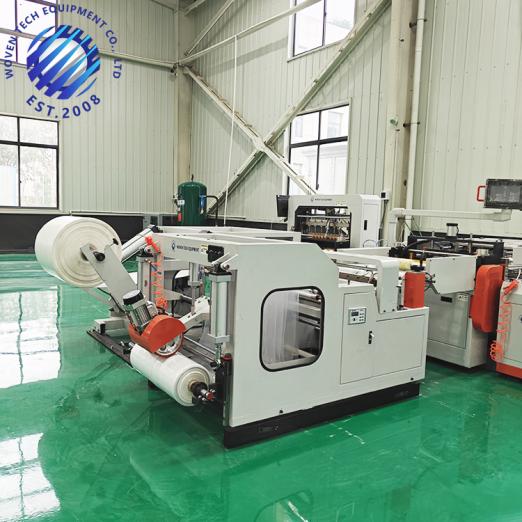

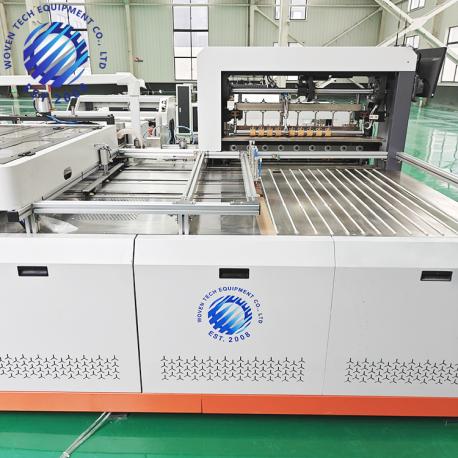

Integrated Cutting, Sewing & Bagging Machine WT-750A
WT-750A 编织袋切套缝一体机
Fully automatic, intelligent machine for cutting, bagging and sewing woven bags. A single operator manages the whole process: feeding, transport, bag insertion, folding, sewing, thread cutting, collecting, stacking and counting. Suitable for cement, flour, feed, sugar, fertilizer and express bags. Available in hot-cut or cold/hot-cut versions.
Production capacity
25–40 pcs/min
Logistics included
CIF Ecuador pricing on every quote with our private shipping line. Full customs clearance and an exclusive freight discount.
See shipping line benefitsFeatures
- Fully automatic operation — one operator per machine, more than double the productivity
- Integrates all bag-making steps in a single continuous flow with no interference

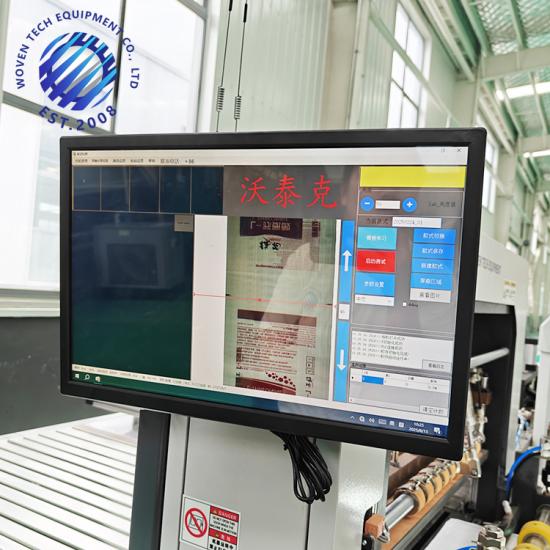

- Photoelectric detection for precise flow control, low consumption and simple operation

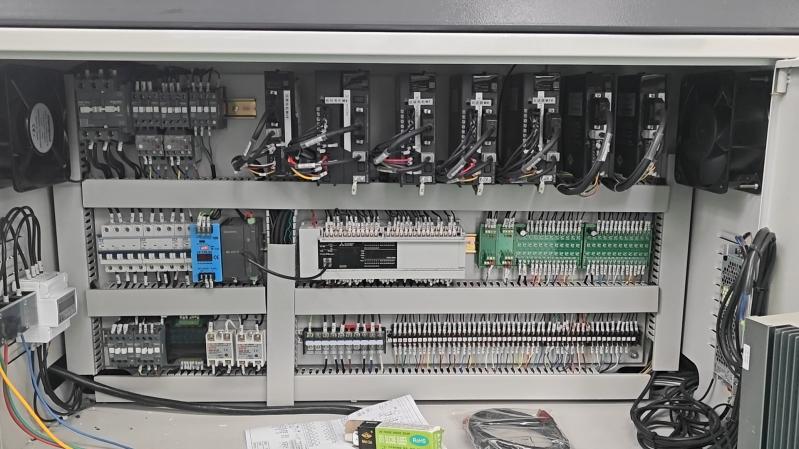

- Digital frequency inverter for speed adjustment
- Available in hot-cut or cold/hot-cut version depending on bag type
Compatible materials
Technical specifications
| Model | WT-750A |
| Max. roll diameter | 1200 mm |
| Material width | 300–750 mm |
| Cutting length | ≤ 1200 mm |
| Bottom fold length | 20–30 mm |
| Production capacity | 25–40 pcs/min |
| Stitch space | 7–13 mm |
| Total power | 10 kW |
| Heating power | 3 kW |
| Air consumption | 0.8 m³/min |
| Dimensions (L × W × H) | 7000 × 6500 × 1700 mm |
| Weight | 3.8 T |
